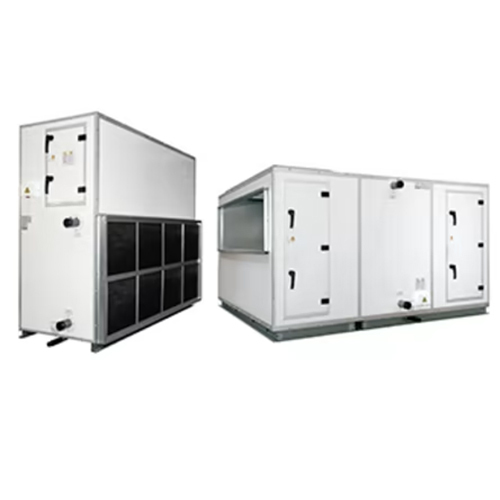

39TD Air Handling Unit Custom Built Double Wall

Get a Price/Quote

MOQ : 1 Unit

39TD Air Handling Unit Custom Built Double Wall Specification

Place of Origin
India

Air Flow Capacity
Up to 32000 CFM

Compressor
Not included (external chiller required)

Dimension (L*W*H)
Custom built (as per project site requirements)

Condition
New

Sensible control
Yes

Heating Capacity
As per coil selection (customized)

Power Mode
AC Power Supply

Power Consumption
Depends on model and configuration

Running Current
Depends on selected fan motor

Power Supply
415V / 50Hz / 3 Phase

Filtration Grade
Up to HEPA (Primary, Secondary, Fine options available)

Mounting
Floor Mounted

Cooling Capacity
As per coil selection (customized)

Temperature Control
Digital / Thermostatic

Indoor Fan Input
As per technical configuration

Refrigerant
Not applicable (Chilled Water/Glycol applications)

Type
Custom Built Double Wall Air Handling Unit

Cooling/Heating
Cooling/Heating

Capacity
Up to 32000 CFM (can be custom specified)

Power Source
Electric

Voltage
415V AC, 3 Phase, 50 Hz

Color
Metallic Grey / White (Powder Coated)

Weight (kg)
Varies as per configuration

Working Temperature
0C ~ 50C

Fan Speed
Multi-Speed (Variable on demand)

Noise Level
Low (subject to fan selection and insulation)

Energy Efficiency Rating
High Efficiency

Remote Operated
Yes

Fresh Air Intake
Customizable

Application
Commercial & Industrial HVAC, Clean Rooms, Hospitals, Malls, Institutions

Panel Material
Pre-coated galvanized steel / Aluminium

Surface Finish
Anticorrosive powder coating

Access Doors
Lockable, gasket sealed

Drive Type
Direct / Belt Driven (as per requirements)

Country of Manufacturing
India

Number of Sections
Custom module configuration (as per design)

Filter Type
Pre, Fine, HEPA, and customized filters available

Drain Pan
Stainless Steel, sloped for proper drainage

Compliance
Meets ASHRAE / ISHRAE standards

Motor Protection
IP54 / Thermal overload protection

Fan Type
Forward Curved / Backward Curved/ Plug Fan

Insulation Type
High Density PUF Sandwich Panels

Humidity Control
Optional

Heat Exchanger Material
Copper tubes with Aluminium fins

Return Air Arrangement
Customizable

Life Expectancy
10+ Years for casing and structure

Panel Thickness
25mm / 43mm PUF Insulated Double Skin

Frame Construction
Extruded Aluminium Profile, corrosion resistant

39TD Air Handling Unit Custom Built Double Wall Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
7 Days

About 39TD Air Handling Unit Custom Built Double Wall

Airflow range: 2,000~50,000 m³/h

Superior casing performance
Compact and suitable for standard air conditioning system
Brand-new casing structure
Multi-functional options
Flexible applications
Ease of operation

Insulation Thickness: 25 mm & 50 mm

Robust Customization for Every Need

The 39TD Air Handling Unit is engineered for adaptability, with modular sections and custom configurations to meet unique project requirements. It accommodates airflow up to 32,000 CFM, making it suitable for applications from clean rooms to malls. Options for fan type, drive, filtration, and climate control ensure perfect alignment with your operational demands.

Superior Construction and Durability

Built with a double-skin design and high-density PUF insulation, the 39TD unit offers excellent thermal efficiency and sound reduction. Its extruded aluminium frame and pre-coated galvanized steel or aluminium panels provide exceptional corrosion resistance. The casing and structure have a life expectancy of over 10 years in typical usage scenarios.

Advanced Performance and Energy Efficiency

Equipped with high-quality copper-aluminium heat exchangers, multi-speed fans, and energy-efficient motor protection, the 39TD delivers reliable climate control while minimizing power consumption. Digital/thermostatic temperature control and optional remote operation enhance usability, while the sloped stainless steel drain pan ensures hygiene and proper drainage.

FAQ's of 39TD Air Handling Unit Custom Built Double Wall:

Q: How do I customize the configuration of the 39TD Air Handling Unit to fit my project requirements?

A: You can specify custom dimensions, airflow capacity, filtration levels, fan and drive types, fresh and return air arrangements, and additional options like humidity control or remote operation. The unit is modular and built to order, ensuring it fits seamlessly within your facility's HVAC system.

Q: What types of applications is the 39TD Air Handling Unit suitable for?

A: This air handling unit is designed for commercial and industrial environments, including clean rooms, hospitals, malls, institutions, and other spaces requiring reliable HVAC solutions with high-quality filtration and energy efficiency.

Q: When should filters in the 39TD Air Handling Unit be replaced or maintained?

A: Filter replacement depends on environmental conditions and usage intensity. Pre and fine filters should typically be inspected monthly, while HEPA filters may last up to 12 months under normal conditions. It is recommended to follow the maintenance schedule provided in the product manual for optimal performance.

Q: Where is the 39TD Air Handling Unit manufactured and does it meet industry standards?

A: The 39TD is manufactured in India and fully complies with ASHRAE and ISHRAE standards, ensuring reliable quality and performance required for rigorous HVAC applications.

Q: What is the process for installation and commissioning of the 39TD Air Handling Unit?

A: After configuration confirmation, the unit is custom-built and shipped for on-site installation, typically requiring a flat, floor-mounted setup with electrical and ducting connections. Commissioning support and detailed installation guidelines are provided to ensure correct and efficient setup.

Q: How does the unit ensure energy efficiency and low noise operation?

A: The double-wall PUF insulated panels provide excellent thermal insulation and noise reduction. High-efficiency motors, variable fan speeds, and advanced control systems further optimize power consumption and operational sound levels, making the unit suitable for sensitive environments.

Q: What are the key benefits of choosing the 39TD Air Handling Unit?

A: With customizable modules, high-efficiency filtration, robust build, advanced thermal control, and exceptional durability, the 39TD offers dependable, energy-saving, and hygienic air handling tailored to your facility's needs.
