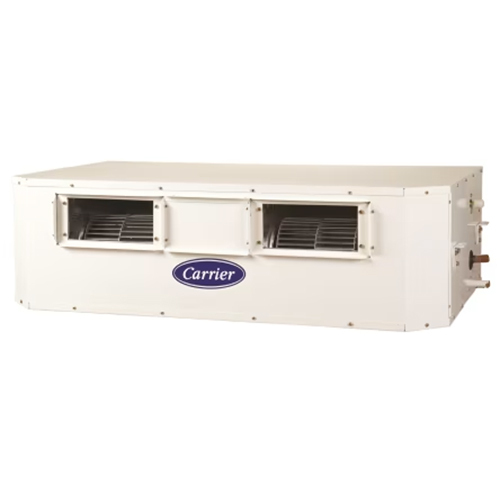

Carrier Ducted AC

Price 125000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Carrier Ducted AC Specification

Cooling Capacity
36,000 to 240,000 BTU/hr

Condition
New

Filtration Grade
G4 High Efficiency Filter

Place of Origin
India

Mounting
Ceiling / Ducted

Power Supply
3 Phase

Running Current
6A~32A (Based on capacity)

Refrigerant
R410A

Power Consumption
Depends on model (Range: 3.8kW - 18.5kW)

Sensible control
Automatic & Manual

Outdoor Fan Input
550~850 W

Heating Capacity
36,000 to 240,000 BTU/hr

Temperature Control
Digital Thermostat

Air Flow Capacity
1700~10,500 m3/h

Power Mode
AC Power

Type Of Compressor
Hermetic Scroll

Dimension (L*W*H)
Varies by model (e.g., Indoor: 1700x750x460 mm, Outdoor: 1060x1300x900 mm)

Compressor
Scroll Type

Indoor Fan Input
260~680 W

Type
Ducted Scroll Split-System Air Conditioner

Cooling/Heating
Cooling & Heating

Capacity
3 to 20 Ton (varies by model)

Power Source
Electric

Voltage
380-415V, 3Ph, 50Hz

Color
Metallic Gray or White

Weight (kg)
Indoor: 85~250 kg, Outdoor: 120~350 kg

Working Temperature
-7C to 43C

Fan Speed
Multiple Speed Selection

Noise Level
Low (Indoor: 55 dB(A)), Outdoor: 68 dB(A)

Energy Efficiency Rating
High Efficiency

Remote Operated
Yes

Insulation Material
Closed Cell Nitrile Rubber

Maximum Height Difference
Up to 30 meters

Maximum Piping Length
Up to 65 meters

Indoor/Outdoor Finish
Powder Coated, Corrosion Resistant

Defrost Mode
Automatic Reverse Cycle

Safety Protection
High/Low Pressure Switch, Overcurrent Protection

Remote Display
LCD Touch Screen

Mounting Kit
Included

Humidity Control
Yes

Suitable Application
Commercial Buildings, Offices, Hotels, Industrial Plants

Protection Devices
Compressor Overload, Fan Motor Overload

Controller Type
Microprocessor Based

Pipe Connection Size
Standard Copper Piping, Varies by model

Carrier Ducted AC Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
7 Days

About Carrier Ducted AC

Cooling capacity: 10.6~59.8 kW

Performance Features (all configurations)

Flexible Air-Discharge option
Scroll Compressor Technology
Motor Capacitors
Filter Drier

Reliability Features (all configurations)

Auto Restart
Efficient Performance
Energy Efficient
Efficient Design
Electronic Remote Control

Maintenance Features

Inbuilt Electrical Safety
Inbuilt Compressor Overload Protection
Easy Servicing

Installation Features

Easy Installation
Chlorine free Refrigerant

Physical Data

Indoor Unit (Ducted)	Outdoor Unit (Air-cooled condenser)	Capacity (kW)	Weight (Kg)
40LC004GA	51MSG-036GSB	10.6	127
40LC005GA	51MSC048GSB	14.1	144
40LC007GSA	38LH-066GSA	19.3	174
40LC010GA	38LH-102GSA	29.9	335
40LC004SDR	51MSD-036SDR	10.6	55
40LC005SDR	51MSD-048SDR	14.1	55
40LC006SDR	38LH066SDR	19.3	62
40LC010DR	38LH100SDR	29.9	91

Designed for Large Commercial Spaces

Built to meet the rigorous demands of commercial facilities, this ducted scroll split-system air conditioner is ideal for offices, hotels, factories, and industrial premises. Its wide capacity range from 3 to 20 tons and high airflow ensure uniform temperature and comfort across extensive spaces. The robust, powder-coated construction guarantees durability in challenging indoor and outdoor environments, even under continuous operation.

Advanced Controls and Protection

Featuring a microprocessor-based controller for precise climate regulation, this unit allows effortless operation through an intuitive LCD touchscreen remote display. Multiple safety mechanisms, including compressor overload, high/low pressure switches, and overcurrent protection, provide enhanced system reliability and peace of mind during continuous use. Users can easily adjust cooling, heating, and dehumidification as required.

Flexible, Efficient Installation and Operation

The system's modular design accommodates up to 65 meters of piping and a 30-meter height difference, supporting flexible placement for challenging installation scenarios. It operates efficiently over a wide temperature range from -7C to 43C and offers high energy efficiency for lower running costs. An included mounting kit and closed cell nitrile rubber insulation simplify setup and further improve operational performance and safety.

FAQ's of Ducted Scroll Split-System Air Conditioner with R410A Refrigerant:

Q: How does the ducted scroll split-system air conditioner control humidity in commercial spaces?

A: The system integrates automatic humidity control, regulated by a microprocessor-based controller and digital thermostat. This allows precise adjustment of indoor humidity to maintain comfort and protect sensitive environments, making it suitable for offices, hotels, and industrial plants.

Q: What is the process for installing this air conditioner, and what are the maximum pipe lengths and height differences it supports?

A: A qualified technician should install the unit with the provided mounting kit. The system supports up to 65 meters of piping length and up to 30 meters of height difference, offering significant flexibility for placement in multi-story buildings or large floorplans.

Q: When would I use the cooling versus the heating function?

A: The cooling function is suitable for hot weather or when maintaining lower temperatures is important, while the heating function is ideal during colder months or in environments where maintaining warmth is crucial. Both functions are accessible via the LCD touchscreen remote or microprocessor controls, allowing seamless, year-round operation.

Q: Where can this air conditioning system be effectively used?

A: This ducted split-system is engineered for extensive commercial applications, including office complexes, hotels, industrial facilities, and large public spaces across India. Its robust construction and advanced features ensure optimal performance in demanding locations.

Q: How does the air conditioner ensure reliable and safe operation?

A: Multiple safety features are built-in, such as compressor and fan motor overload protection, high/low pressure switches, overcurrent protection, and high-efficiency G4 filters. These elements collectively ensure uninterrupted, efficient operation and protect both the system and users.

Q: What are the benefits of using R410A refrigerant and a hermetic scroll compressor?

A: R410A refrigerant offers high energy efficiency and better performance with lower environmental impact. The hermetic scroll compressor delivers smooth, quiet operation and robust performance, enhancing the system's overall reliability and longevity.

Q: How can I control and monitor the temperature settings in this air conditioner?

A: Temperature control is managed through a digital thermostat and an LCD touchscreen remote display. The microprocessor-based system allows automatic and manual adjustments, enabling precise temperature management to suit different environments and preferences.
