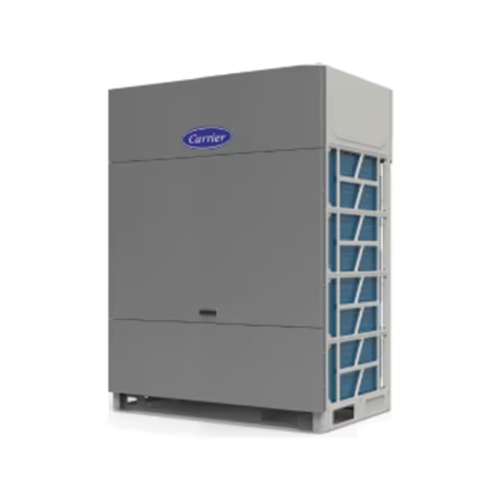

Carrier VRF systems

Get a Price/Quote

MOQ : 1 Unit

Carrier VRF systems Specification

Type Of Compressor
DC Inverter Compressor

Dimension (L*W*H)
Approx. 1680mm x 780mm x 1430mm (varies by model)

Compressor
Twin Rotary / Scroll

Mounting
Floor Standing (Outdoor Unit)

Filtration Grade
High Efficiency

Condition
New

Heating Capacity
25.0 kW to 168 kW

Power Mode
Three Phase AC

Air Flow Capacity
5400 to 15360 m3/hr

Sensible control
Available

Power Supply
Direct

Running Current
23-140A (model dependent)

Place of Origin
China

Power Consumption
Dependent on Model & Load

Temperature Control
Precise Microprocessor Control

Outdoor Fan Input
570W ~ 2460W

Indoor Fan Input
Variable as per indoor unit

Cooling Capacity
22.4 kW to 150 kW

Refrigerant
R410A

Type
VRF (Variable Refrigerant Flow) System

Cooling/Heating
Cooling & Heating

Capacity
8 HP to 54 HP (Modular) / Up to 150% piping connection ratio

Power Source
Electric

Voltage
380-415V, 3 Phase, 50 Hz

Color
White

Weight (kg)
375-610 kg (depending on model)

Working Temperature
-5C to 52C (cooling); -20C to 24C (heating)

Fan Speed
Auto / High / Medium / Low

Noise Level
As low as 55 dB(A)

Energy Efficiency Rating
High (up to 4.7 EER/COP)

Remote Operated
Yes

Application
Commercial Buildings, Hotels, Offices, Hospitals

Remote Monitoring
Available (with network adapter)

Heat Recovery
Optional

Maximum Height Difference
Up to 110m

Self Diagnosis Function
Available

Auto Restart
Yes

Defrost Function
Smart Defrost

Phase Protection
Yes

Ambient Temperature Range
-5C to 52C (Cooling), -20C to 24C (Heating)

Control System
Intelligent Touch Controller Compatible

Refrigerant Control
Electronic Expansion Valve

Anti-corrosion Protection
Yes

Number of Indoor Units Connectable
Up to 64 units

EC Fan Motor
Available in some models

Cabinet Material
Galvanized Steel with Powder Coating

Pipe Length
Maximum actual pipe length: 1000m, Maximum length to farthest indoor: 200m

Carrier VRF systems Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
7 Days

About Carrier VRF systems

Feature

Wide Ambient range: -15°C to 55°C in Cooling mode
Best in class piping : Total piping length upto 1100m
EVI compressor technology : Enhanced Vapor Injection (EVI) Compressor boosts cooling and heating capacities
IP55 Fully sealed e-box Protects from water, dust, rodents and small insects along with Inbuilt fan and PTC heater
Energy savings : Full DC Inverter Technology for precise speed adjustments and optimal system performance
Micro- channel heat exchanger : Increases the speed of temperature change due to large surface area of metal plates
Advanced subcooling technology :Enhances refrigerant heat transfer and reduces noise
Enhanced Flexibility through communication Bus smartlink : The system provides installation flexibility in the form of daisy chain, tree, circle and star connnections.
Sensor Backup : Virtual sensors ensure continuous operation, backing up physical sensors
Quadruple Backup : Quadruple backup system provides redundancy for units, fans, compressors, and sensors
Easy maintenance : Doctor 2.0 smart maintenance tool with Bluetooth for easy system monitoring and maintenance
Auto refrigerant charge Automatic refrigerant charging simplifies installation and maintenance

Advanced Control and Flexibility

The X Power i Carrier Xpower VRF system boasts compatibility with intelligent touch controllers, allowing centralized and precise management of multiple indoor units. Whether you need seamless temperature adjustments across different zones or real-time monitoring, its direct interface and remote monitoring capabilities streamline operations in complex installations.

Robust Build and Superior Durability

Engineered with galvanized steel and powder coating, this VRF system offers substantial resistance to corrosion, making it suitable for challenging environments. The high-efficiency filtration and smart defrost function enhance longevity, ensure maximum operational uptime, and contribute to healthier indoor air quality.

Versatile Applications and Exceptional Efficiency

Designed for a wide array of commercial spaces, the X Power i Carrier Xpower VRF system delivers both cooling and heating with a high energy efficiency rating (up to 4.7 EER/COP). Its modular configuration and extensive pipe length capabilities make it ideal for large or multi-story buildings, while advanced DC inverter compressors keep energy consumption optimized.

FAQ's of X Power i Carrier Xpower VRF systems:

Q: How many indoor units can be connected to the X Power i Carrier Xpower VRF system?

A: This VRF system supports up to 64 indoor units, enabling it to meet the climate control needs of large or complex facilities such as office towers, hotels, or hospitals.

Q: What are the main benefits of choosing the X Power i Carrier Xpower VRF system for commercial applications?

A: Key benefits include high energy efficiency, flexible modular capacity (8 HP to 54 HP), precise microprocessor-based temperature control, remote monitoring, smart defrosting, robust anti-corrosion protection, and support for intelligent touch controller integration.

Q: How does the intelligent touch controller improve system management?

A: The intelligent touch controller provides centralized control, allowing users to easily manage temperature settings, monitor system status, and receive diagnostic alerts for all connected indoor units from a single interface.

Q: What is the maximum pipe length and elevation difference supported by this VRF system?

A: The system accommodates a maximum actual pipe length of up to 1000 meters and a height difference of up to 110 meters between indoor and outdoor units, making it suitable for sprawling or multi-level buildings.

Q: Where can the X Power i Carrier Xpower VRF system be used most effectively?

A: It is best suited for commercial settings such as hotels, office complexes, hospitals, and other large public buildings requiring efficient, centralized cooling and heating.

Q: How does the self-diagnosis and remote monitoring feature work?

A: The self-diagnosis function continuously checks system performance and notifies users of faults, while the remote monitoring option (using a network adapter) allows for real-time supervision and adjustments from virtually anywhere.

Q: What features ensure reliable operation during power interruptions or extreme weather?

A: The system incorporates auto restart after power failures, phase protection, electronic expansion valve for precise refrigerant control, and a wide ambient working temperature range, ensuring dependable performance even in demanding conditions.
