FAN COILS

• Air Flow Capacity
• 500-1700 m3/h

• Capacity
• Various models available (refer to ordering data)

• Color
• White

• Compressor
• Other, Not applicable (chilled water)

• Condition
• New

• Cooling Capacity
• 2.8 - 14 kW

• Cooling/Heating
• Other, Cooling & Heating

• Dimension (L*W*H)
• 840*840*300 mm (1-way grille); panel 950*950*55 mm

• Energy Efficiency Rating
• Other, High (EER rated as per model)

• Fan Speed
• Three speeds (High/Medium/Low)

• Filtration Grade
• Primary filter

• Heating Capacity
• 3.3 - 16 kW

• Indoor Fan Input
• Motor 60-150W

• Mounting
• Other, Ceiling Mounted/Cassette

• Noise Level
• Low (as per model specification)

• Place of Origin
• China

• Power Consumption
• 60-150W (depending on model/fan speed)

• Power Mode
• Other, AC powered

• Power Source
• Other, Electric

• Power Supply
• Single Phase

• Refrigerant
• other, Water-based (Hydronic)

• Remote Operated
• Yes

• Running Current
• 0.3-0.8A

• Sensible control
• Yes

• Temperature Control
• Digital Thermostat (wired/remote optional)

• Type

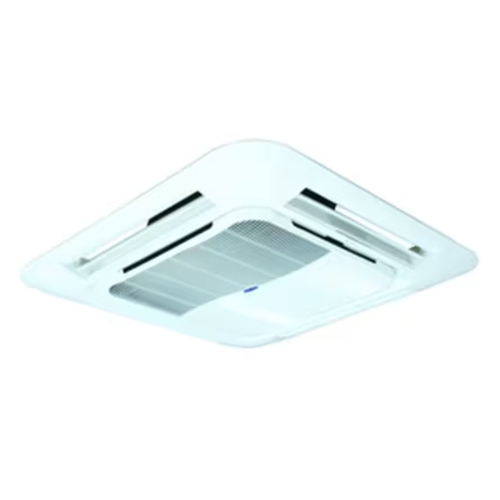

• Hydronic Cassette

• Voltage
• 220-240V / 50Hz

• Weight (kg)
• Varies by model (approx. 27-42kg)

• Working Temperature
• 5C - 43C

• Air Flow Capacity
• 8000 m3/h

• Capacity
• 40 HP

• Color
• White

• Compressor
• Other, Not Applicable (uses remote chiller)

• Condition
• New

• Cooling Capacity
• 112 kW

• Cooling/Heating
• Other, Both

• Dimension (L*W*H)
• 2200mm x 450mm x 700mm

• Energy Efficiency Rating
• Other, High Efficiency

• Fan Speed
• 3 Speeds (High/Medium/Low)

• Filtration Grade
• Washable Pre-filter

• Heating Capacity
• 120 kW

• Indoor Fan Input
• 2.5 kW

• Mounting
• Wall Mounted

• Noise Level
• Low (typically below 60 dB(A))

• Place of Origin
• India

• Power Consumption
• Approx. 2.5 kW

• Power Mode
• Other, AC Electric

• Power Source
• Other, Electric

• Power Supply
• 3 Phase

• Refrigerant
• other, Chilled Water (no direct refrigerant used)

• Remote Operated
• Yes

• Running Current
• Approx. 6-7 A

• Sensible control
• Yes

• Temperature Control
• Digital Thermostat

• Type
• Fan Coil, Hi-Wall Mounted

• Voltage
• 380-415V / 3Ph / 50Hz

• Weight (kg)
• Approx. 220 kg

• Working Temperature
• 5C to 45C

• Air Flow Capacity
• 300-1200 CFM

• Capacity
• 300-1200 CFM (varies by model)

• Color
• White / Off White

• Compressor
• Other, Not Included

• Condition
• New

• Cooling Capacity
• 2.3 - 8.0 kW

• Cooling/Heating
• Other, Cooling & Heating

• Dimension (L*W*H)
• 900 x 470 x 220 mm (varies by model)

• Energy Efficiency Rating
• Other, High

• Fan Speed
• 3 Speed

• Filtration Grade
• Standard

• Heating Capacity
• 2.6 - 9.0 kW

• Indoor Fan Input
• 45 - 110 W

• Mounting
• Other, Ceiling / Ducted

• Noise Level
• 48 dB(A)

• Place of Origin
• India

• Power Consumption
• 45 - 110 W

• Power Mode
• AC

• Power Source
• Other, Electric

• Power Supply
• Single Phase

• Refrigerant
• other, Not Applicable (Chilled water type)

• Remote Operated
• Yes

• Running Current
• 0.22-0.52 A

• Sensible control
• Yes

• Temperature Control
• Thermostatic

• Type

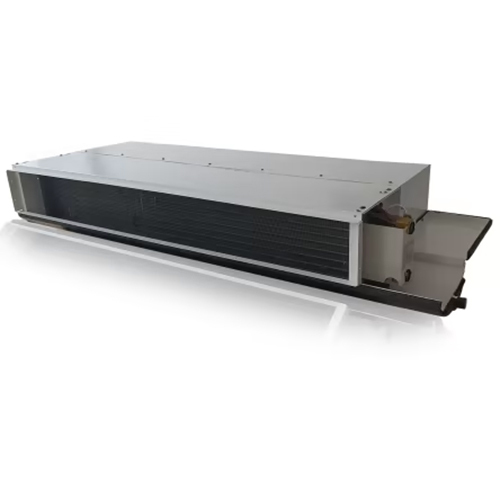

• Horizontal Fan Coil Unit

• Voltage
• 220-240V / 50Hz

• Weight (kg)
• 18-33 kg (varies by model)

• Working Temperature
• 5C - 45C

• Air Flow Capacity
• 200-1400 m3/h (varies by model)

• Capacity
• 200-1400 CFM (varies by model)

• Color
• Metallic/Custom

• Compressor
• Other, Not Applicable (water system)

• Condition
• New

• Cooling Capacity
• 2.2~12 kW

• Cooling/Heating
• Other, Both

• Dimension (L*W*H)
• Varies by model (e.g., 970470230 mm)

• Energy Efficiency Rating
• Other, High Efficiency

• Fan Speed
• 3 Speed

• Filtration Grade
• G3 filter (optional higher grades)

• Heating Capacity
• 2.7~16 kW

• Indoor Fan Input
• 38-120 W

• Mounting
• Other, Ceiling Concealed

• Noise Level
• Low (as low as 35 dB(A))

• Place of Origin
• India

• Power Consumption
• 38-120 W (depending on model)

• Power Mode
• AC

• Power Source
• Other, Electric

• Power Supply
• Single Phase

• Refrigerant
• other, R22/R410A (Chilled Water Type)

• Remote Operated
• Yes

• Running Current
• 0.19-0.51 A (by model)

• Sensible control
• Yes

• Temperature Control
• Thermostatic/Remote

• Type

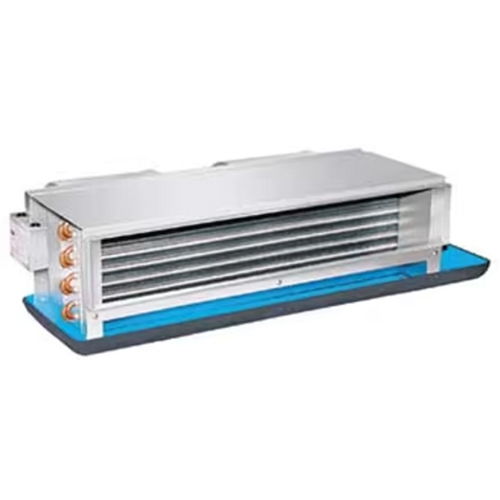

• Horizontal Concealed Fan Coil Unit

• Voltage
• 220V~240V/50Hz

• Weight (kg)
• 18-35 kg (varies by model)

• Working Temperature
• 5C to 45C
